Shengli Centrifuge Manufacturing
PS/PSB flat plate type small experimental centrifuge
Features and uses
This product is a vertical human-type upper unloading gap operation filter centrifuge, which is widely used in chemical, food, pharmaceutical, environmental protection, mining, teaching and other experiments. It can be used to determine the material separation process parameters, and it can also be used as a product process. For trial production. The centrifuge has functions such as speed setting, separation time setting, etc., which can ensure that the user completes the test automatically under the set process parameters, and ensures the reproducibility of the test and the stability of the process parameters. The design and manufacture meet the requirements of GMP regulations.

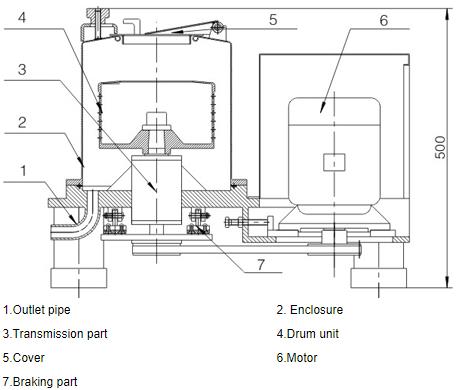

Structure chart
The main technical parameters
Item | Model | |||
PS200 | PSB200 | PSB300 | PSB450 | |
Drum diameter(mm) | 200 | 200 | 300 | 450 |
Drum working highly(mm) | 100 | 100 | 150 | 200 |
Drum working volume(L) | 1.8 | 1.8 | 5 | 20 |
Maximum loading limit(kg) | 2.5 | 2.5 | 7.5 | 30 |
Durm speed(r/min) | 3500 | 3500 | 2200 | 1750/1900 |
Filtration area(m2) | 0.06 | 0.06 | 0.14 | 0.28 |
Separation factor(ω2r/ ɡ) | 1370 | 1370 | 812 | 770/910 |
Motor power(kw) | 0.75 | 0.75 | 1.1 | 1.5/2.2 |
Overall weight(kg) | 100 | 100 | 200 | 500 |
Physical size(mm) | 650×400×500 | 650×400×500 | 850×600×600 | 1050×800×720 |
